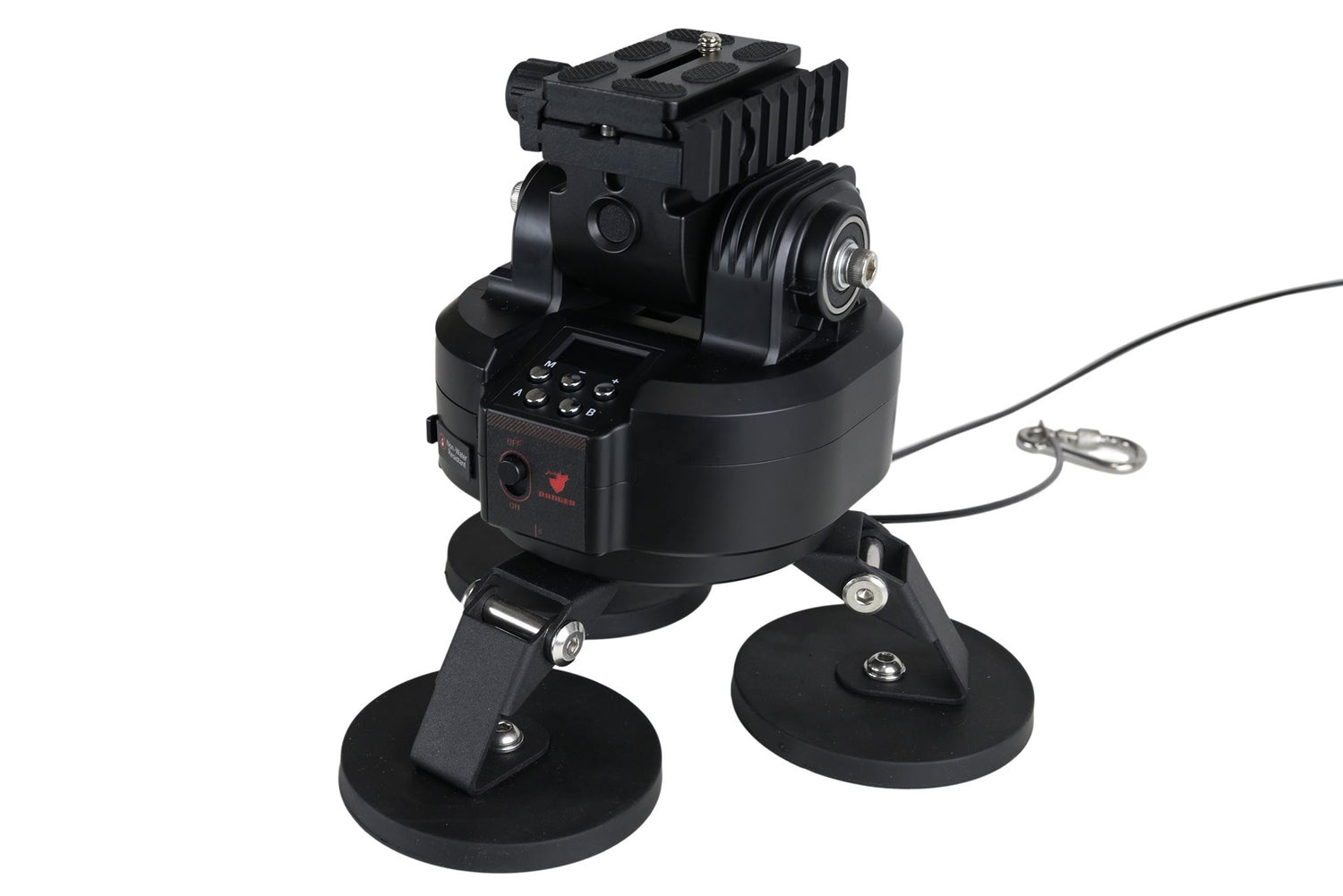

Ranger Remote Control Thermal Roof Mount

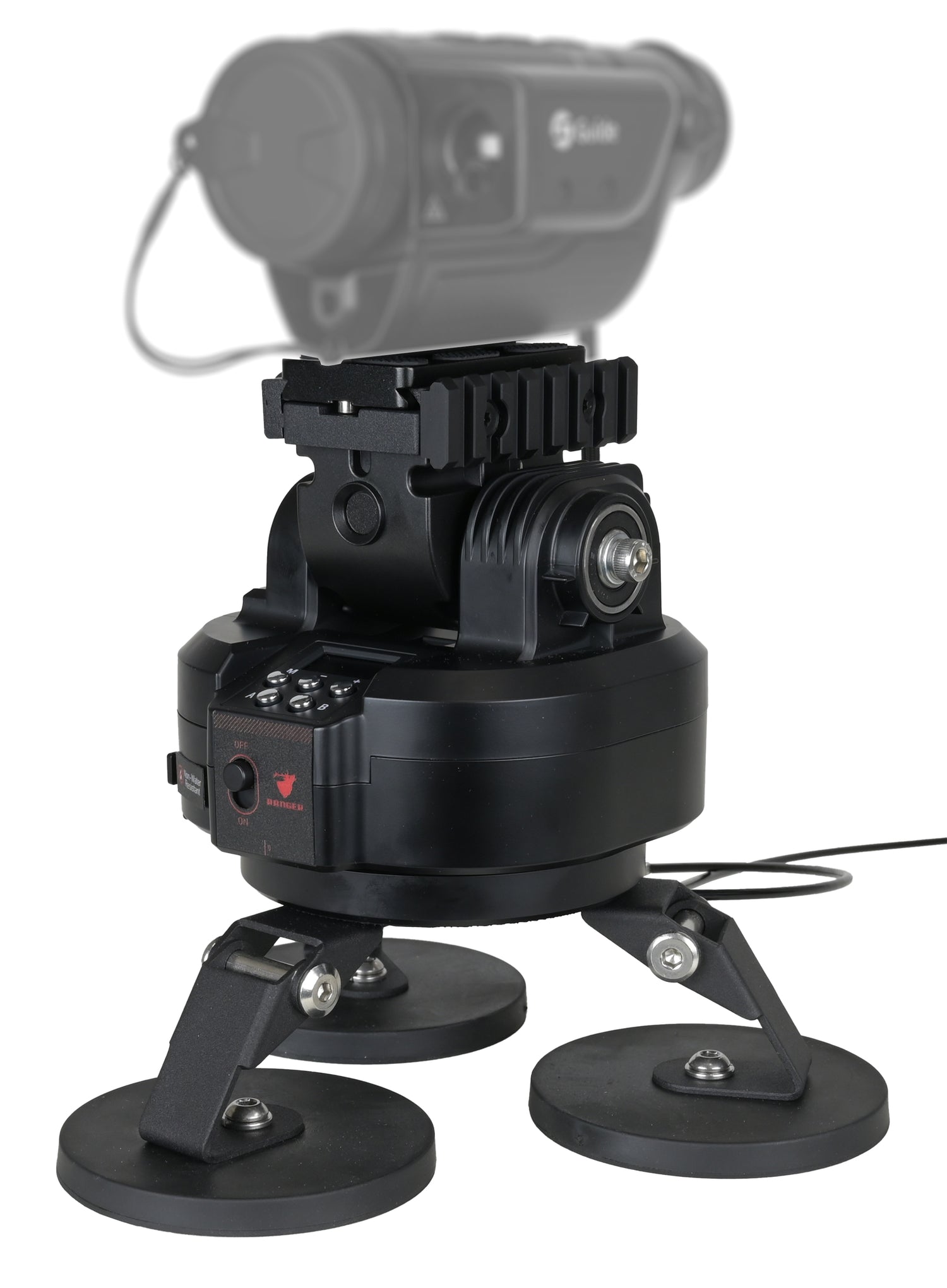

Mount your thermal or camera to almost any vehicle with the Ranger Remote-Controlled 2-Axis Tripod, designed for fast scanning, hands-free operation and reliable stability in the field.

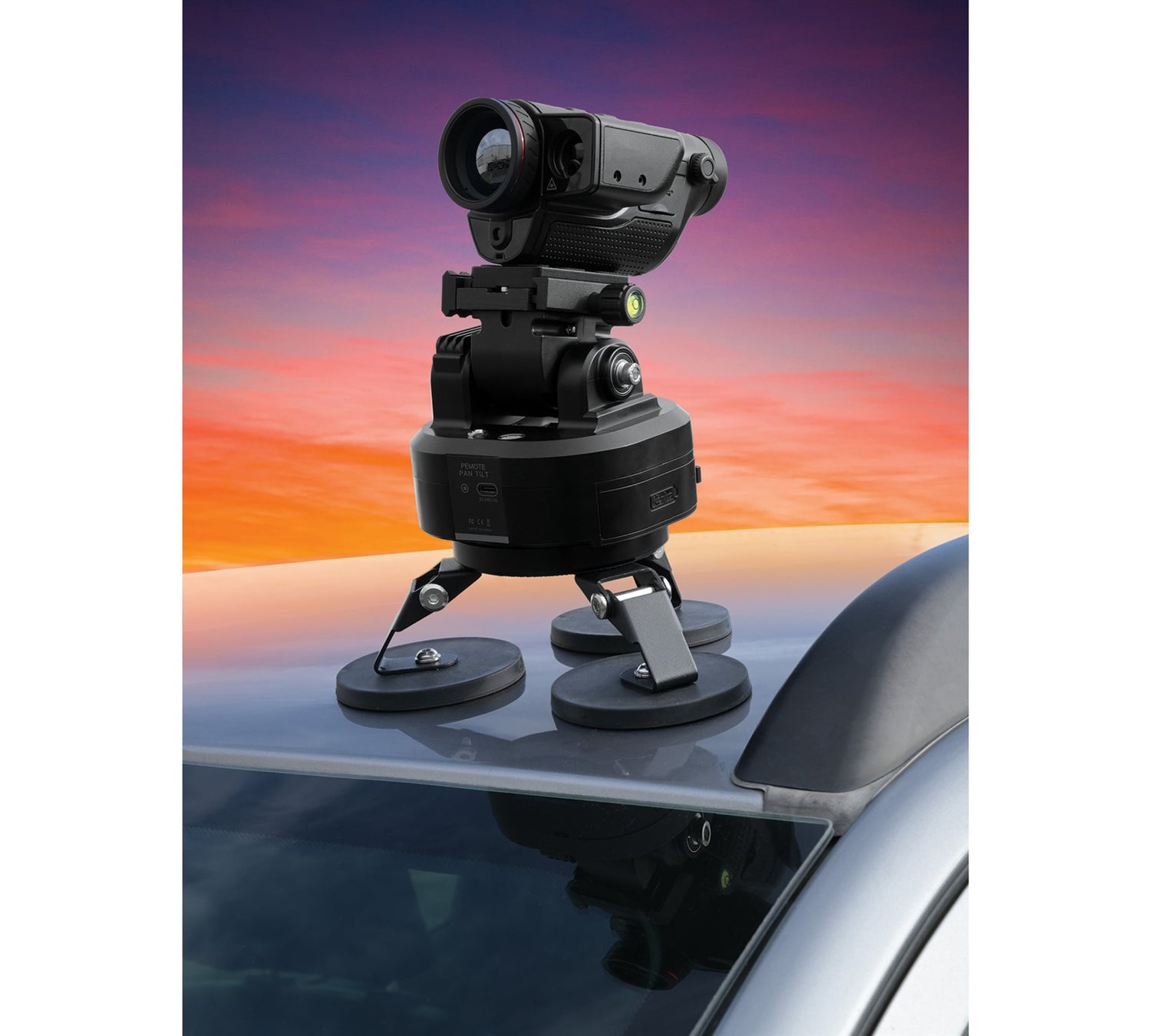

Three powerful magnetic feet with non-slip rubber coverings lock securely to your vehicle roof, bonnet or tray, keeping your tripod firmly in place on rough tracks or at speed.

For added security, the system includes long and short safety lanyards with carabiners to protect both your thermal unit and your vehicle.

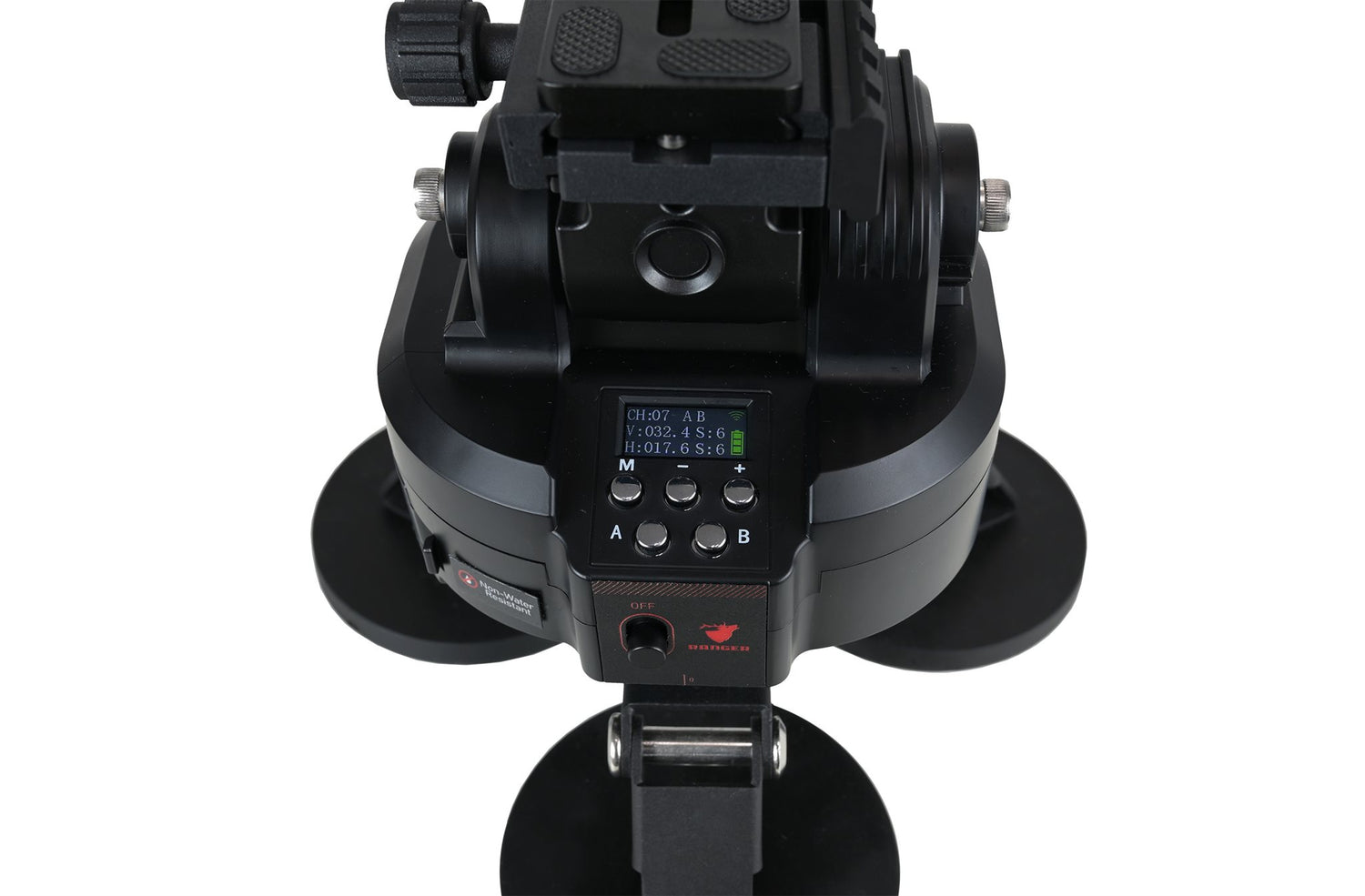

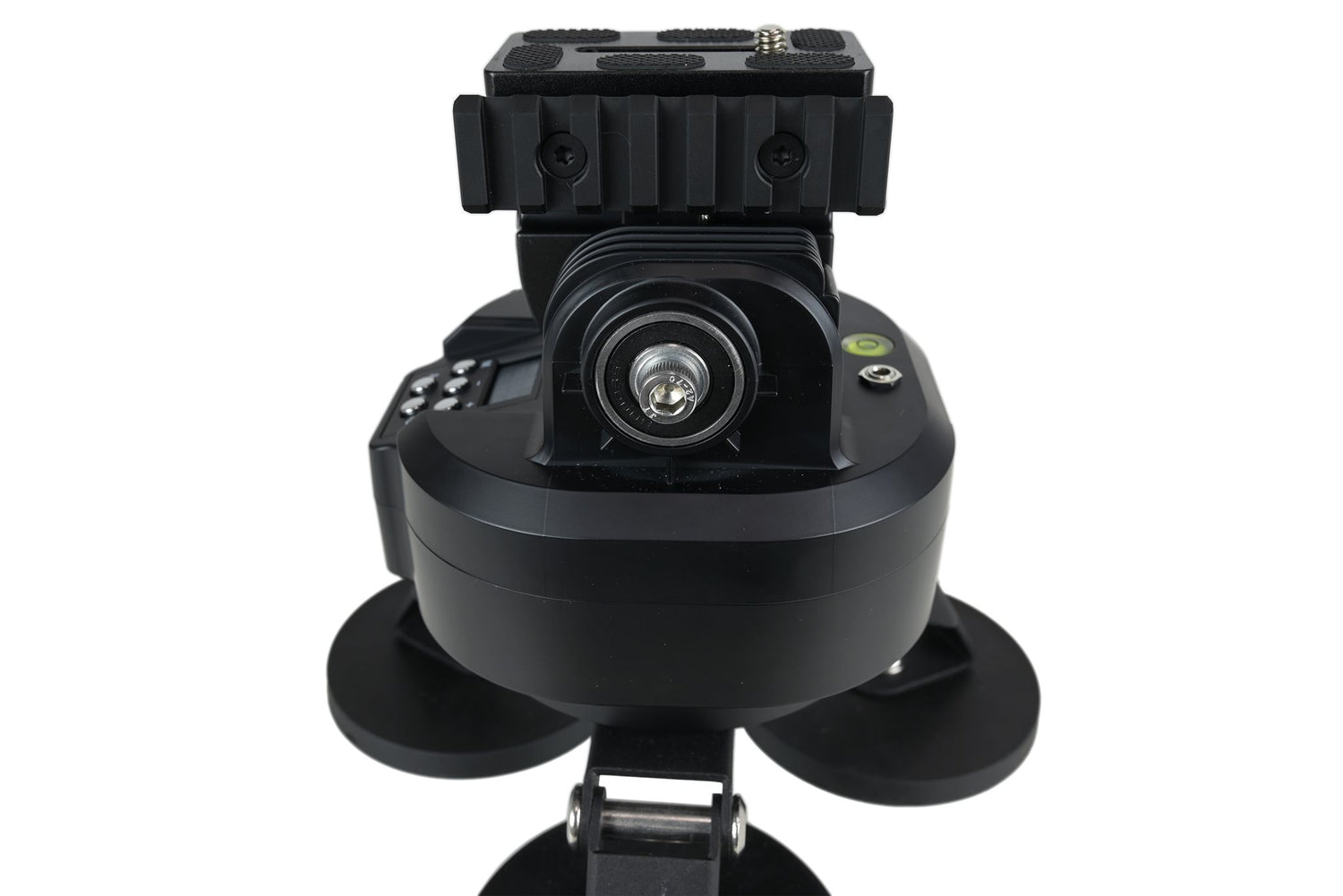

The precision stepper-motor driven pan/tilt head provides smooth, accurate movement, making it ideal for spotting, scanning and identifying distant heat signatures.

With eight adjustable speeds from ultra-slow 0.05rpm to fast 4rpm, you can fine-tune your scanning style for long-range detection or quick area sweeps.

Two preset positions and two user-defined memory points let you instantly return to your chosen scanning angles with a single button press.

Auto-Scan mode allows the tripod to pan continuously between Point A and Point B at your selected speed, freeing you to focus on the hunt.

A shutter-cable port enables remote triggering when paired with a compatible camera for wildlife monitoring or filming sessions.

The system supports payloads up to 2kg, making it suitable for thermal imagers, night-vision units and standard SLR cameras.

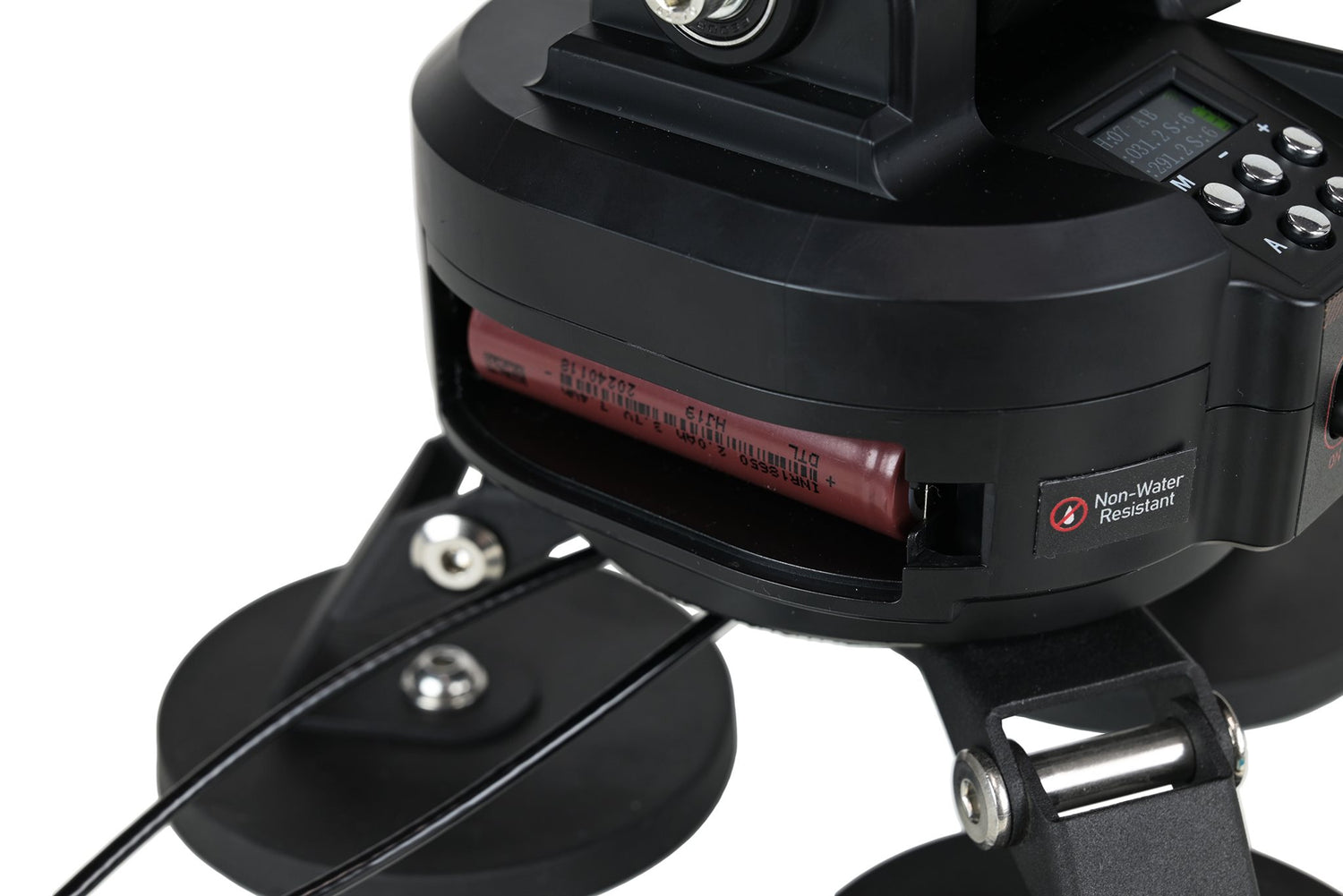

Powered by a rechargeable 18650 Li-ion battery and controlled via a 2.4GHz remote with over 30m range, it’s built for convenience and field reliability.

Compact, rugged and easy to deploy, this tripod mount is the perfect addition for hunters who rely on thermal optics for night scanning and vehicle-based glassing.

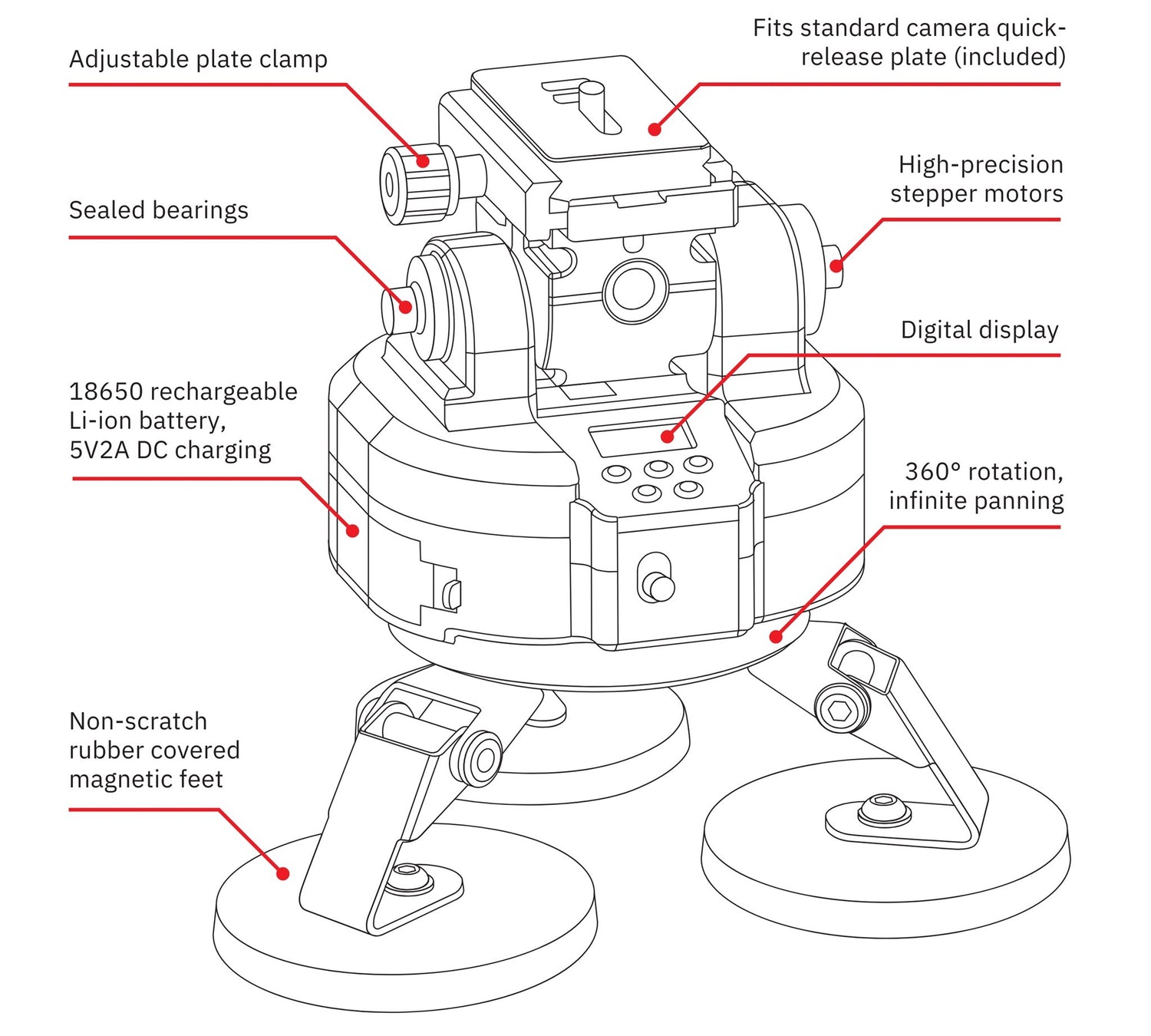

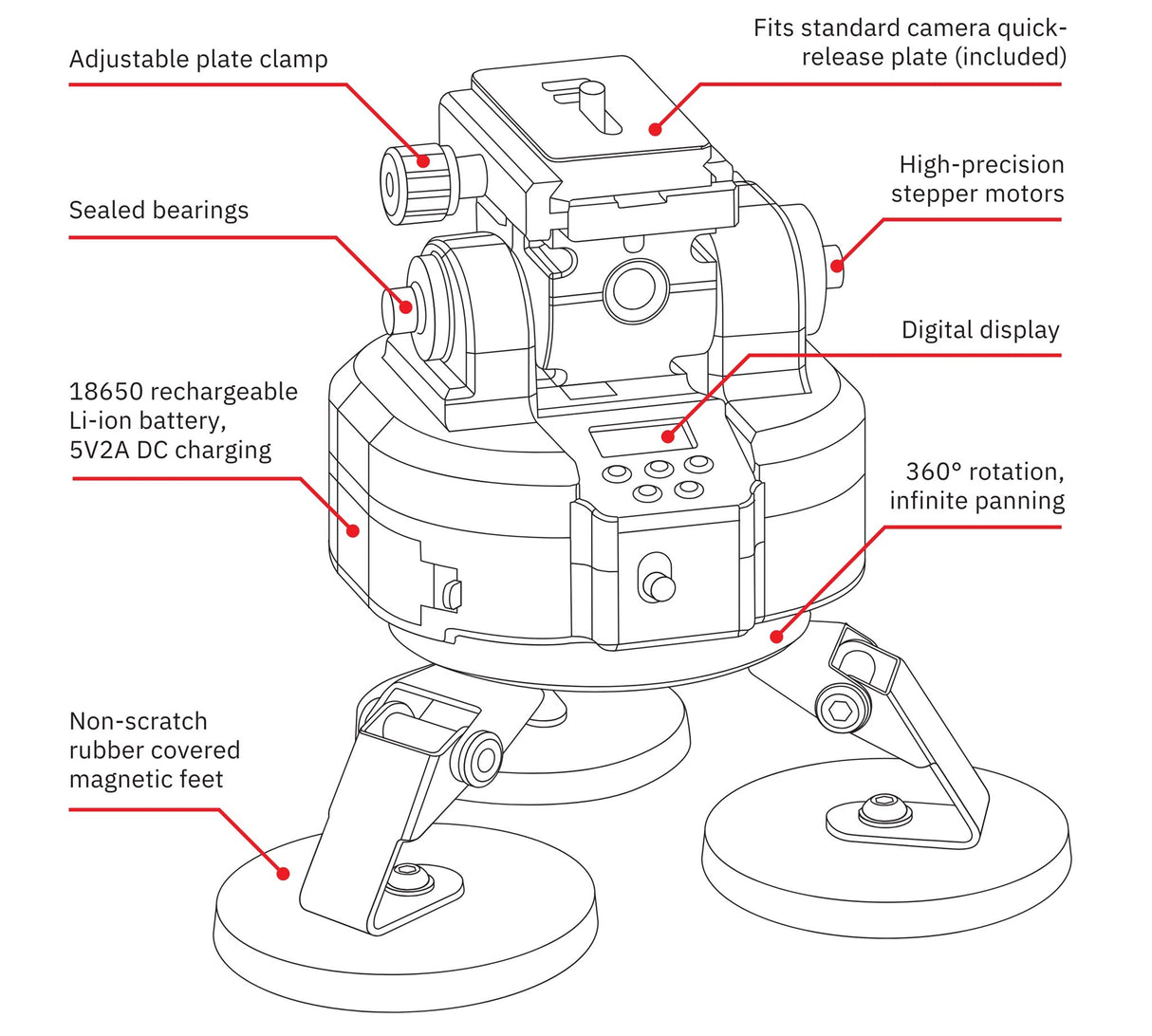

Features
• Precision stepper-motor pan/tilt system
• 8 speed settings (0.05rpm to 4rpm)
• Three-foot magnetic vehicle mount with non-slip rubber pads
• Auto-Scan mode between Points A & B

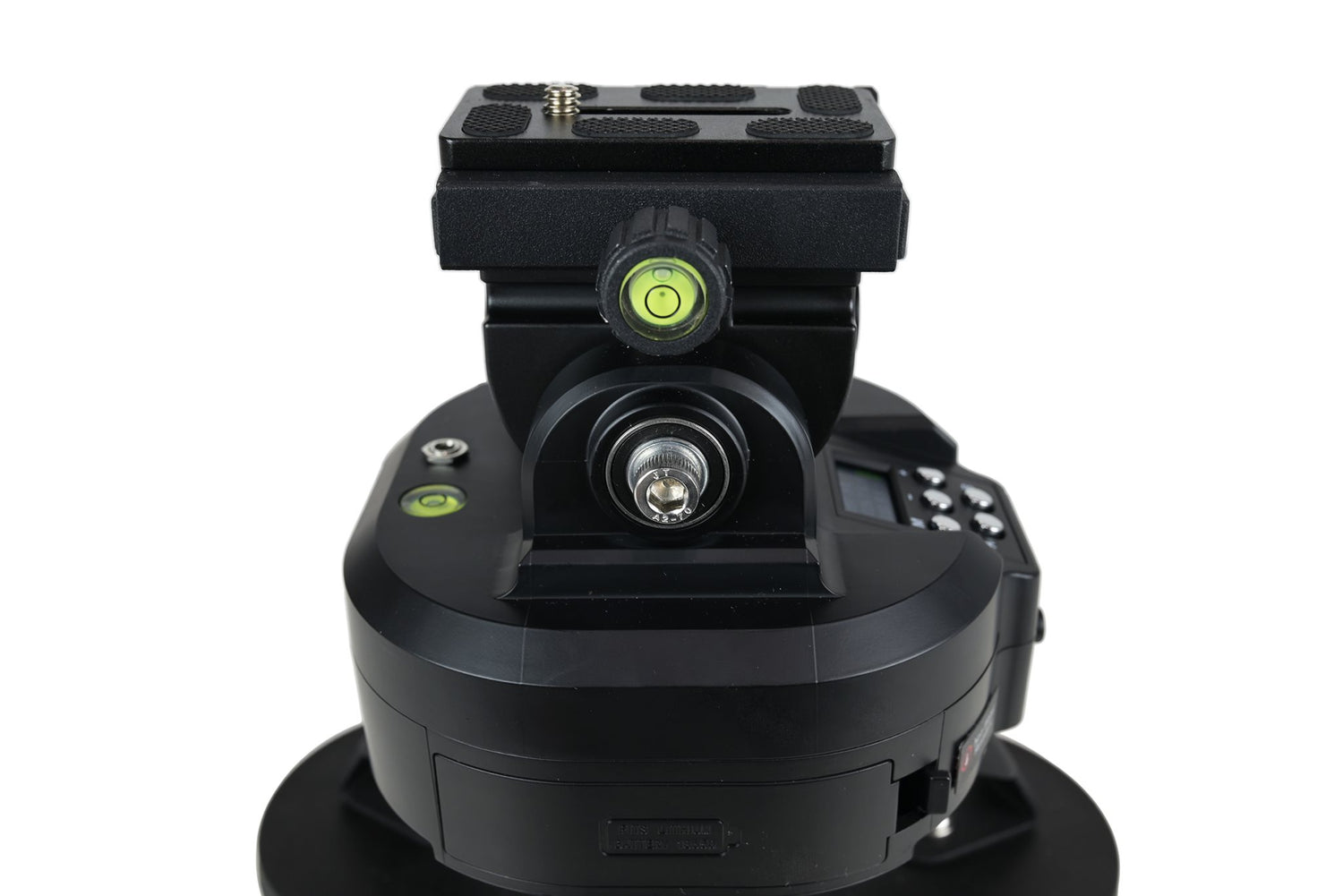

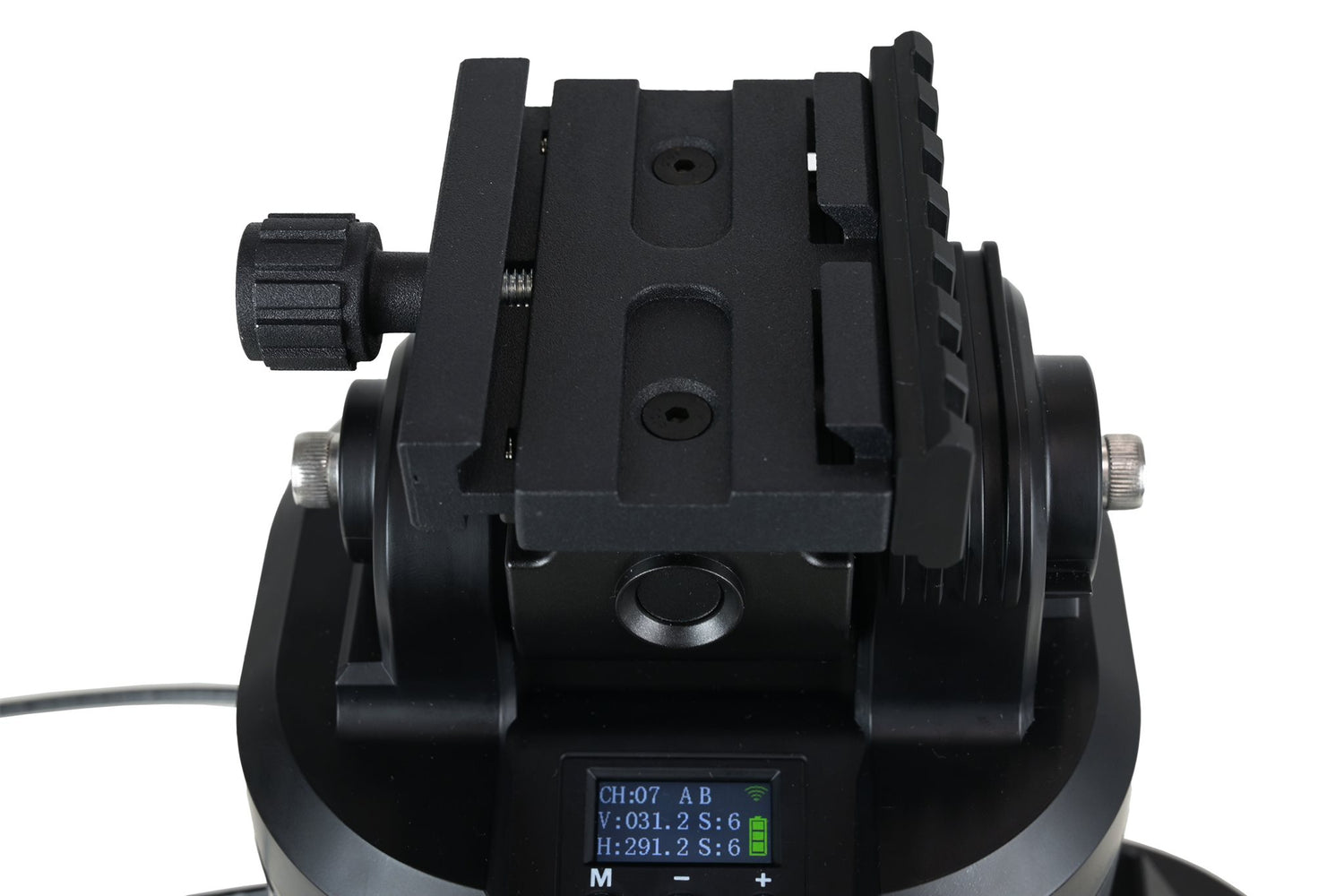

• PU70 ARCA quick-release plate with 1/4"-20 mounting screw
• 100 preset channels
• Two user-programmable positions per channel
• Supports loads up to 2kg
• Includes safety lanyards and carabiners
• >30m remote range (2.4GHz)

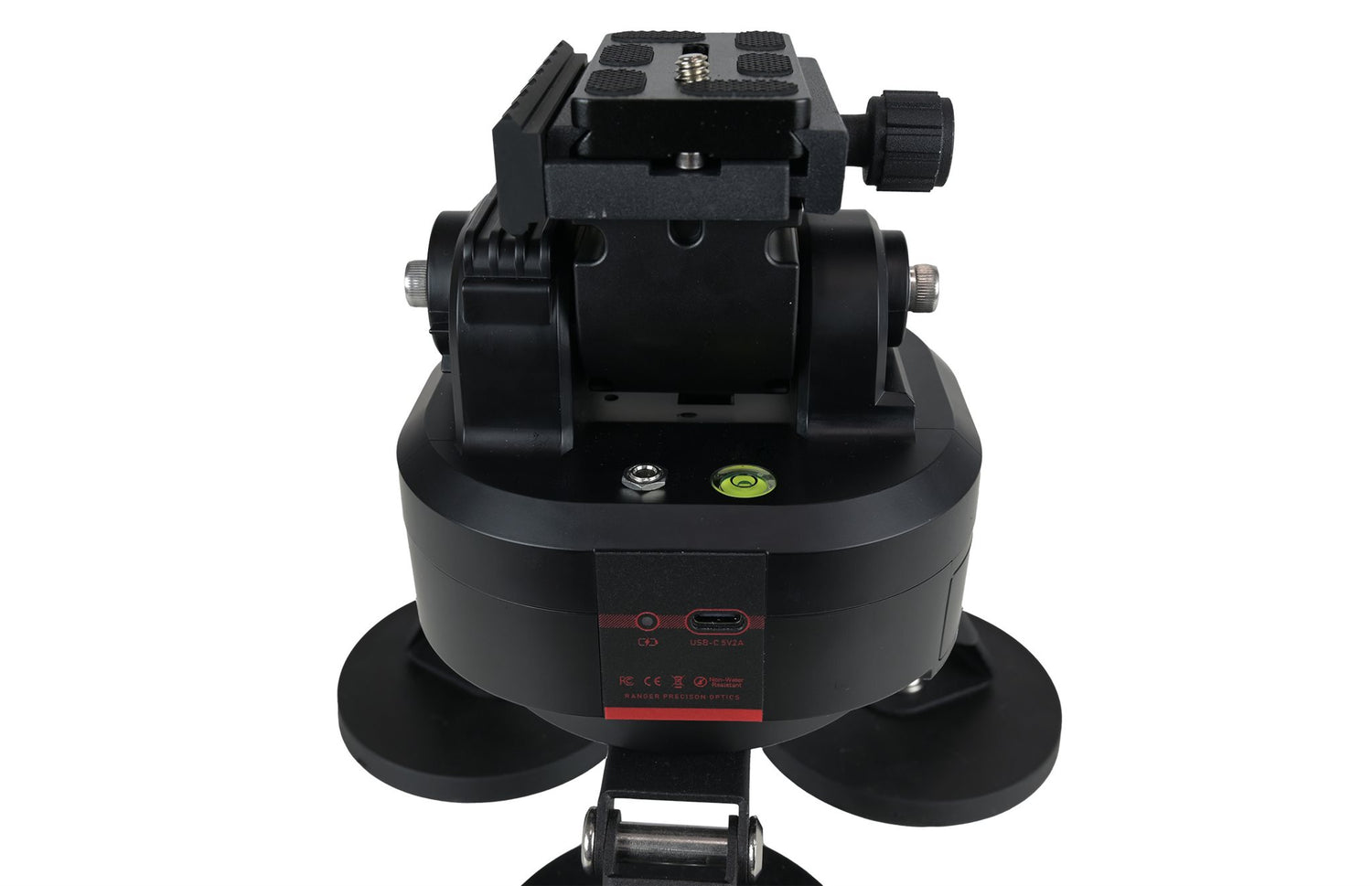

• USB-C charging
• Internal 18650 Li-ion battery

Specifications
• Pan angle: 360° infinite
• Tilt angle: ±50°
• Pan speed: 18°/sec – 24°/sec
• Tilt speed: 0.1°/sec – 4°/sec
• Power draw: 8W
• DC input: USB-C 5V 2A
• Tripod battery: 1× 18650 Li-ion (2000mAh)
• Size: 122 × 120 × 130 mm
• Weight: 855 g
• Warranty: 1 year

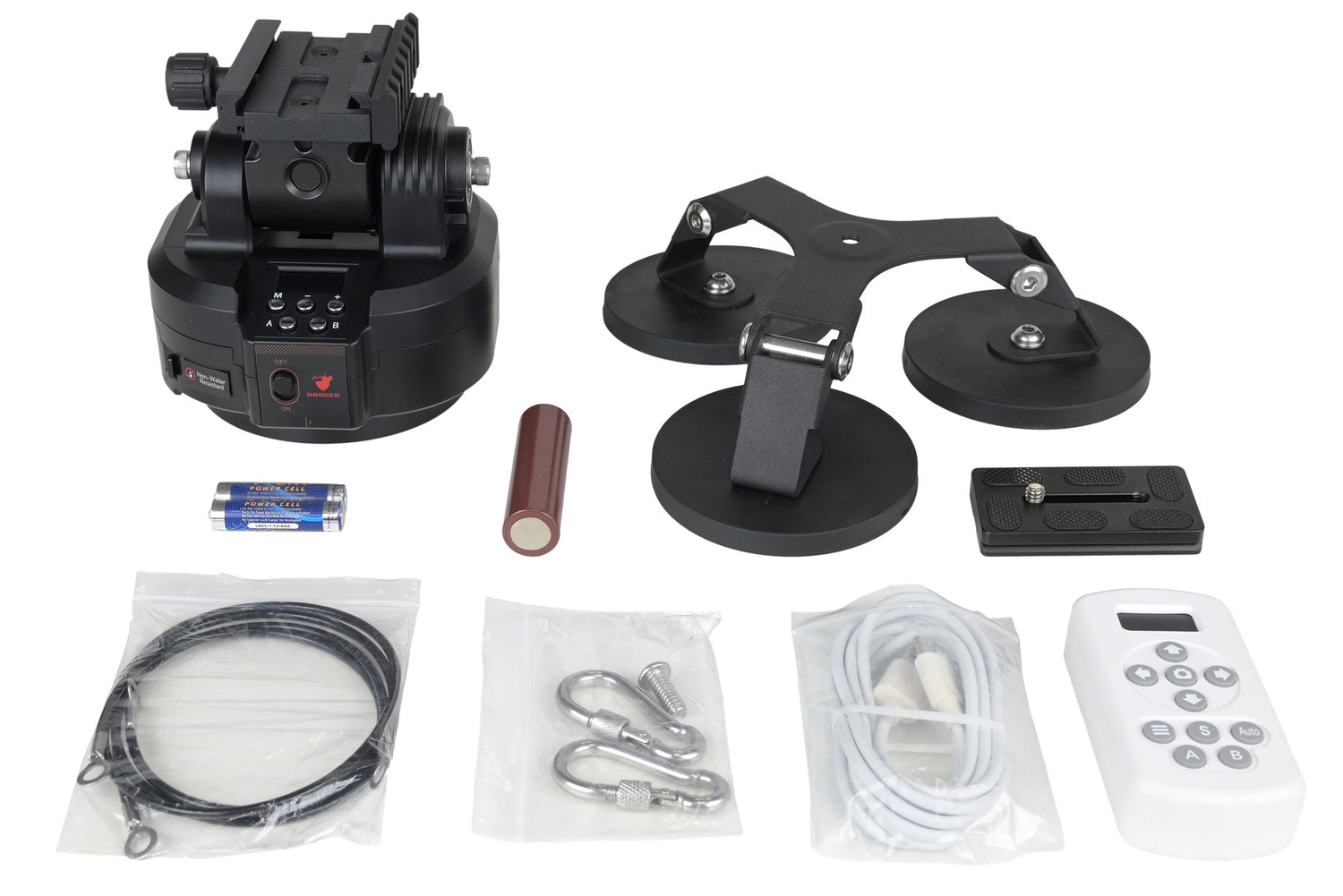

Included
• Ranger RC 2-Axis Tripod
• Magnetic 3-Foot Stand
• Remote control
• Long safety lanyard
• Short thermal lanyard
• 2x twist-lock carabiners
• USB-C cable
• 18650 battery
• 2× AAA remote batteries
• User manual
